Technical parameters
 Band width | 30-360 mm |
 Band thickness | 0,6-5,0 mm |
 Tooth pitch | 12-60 mm |
 Tooth height | 4-25 mm |
 uhel celniho zubu | 0°-38° |
 Feed speed | 0-20 teeth / min |
 prumer brusneho kotouce | 280-350 mm |
 tloustka brusneho kotouce | 8-15 mm |
 Motor power | 3,0 kW |
 vykon chlazeni | 160 l / min |

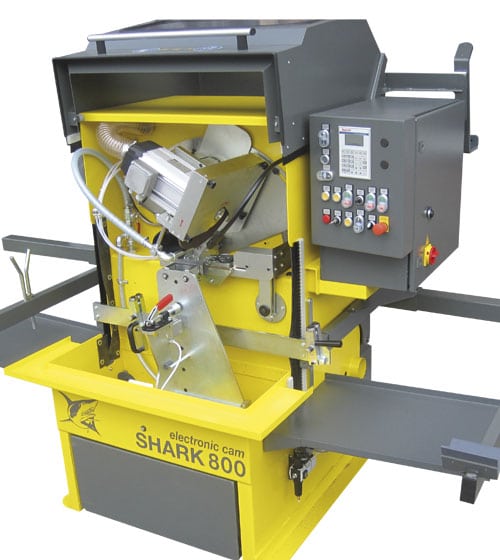

The professional CNC profile sharpening machine for wet grinding

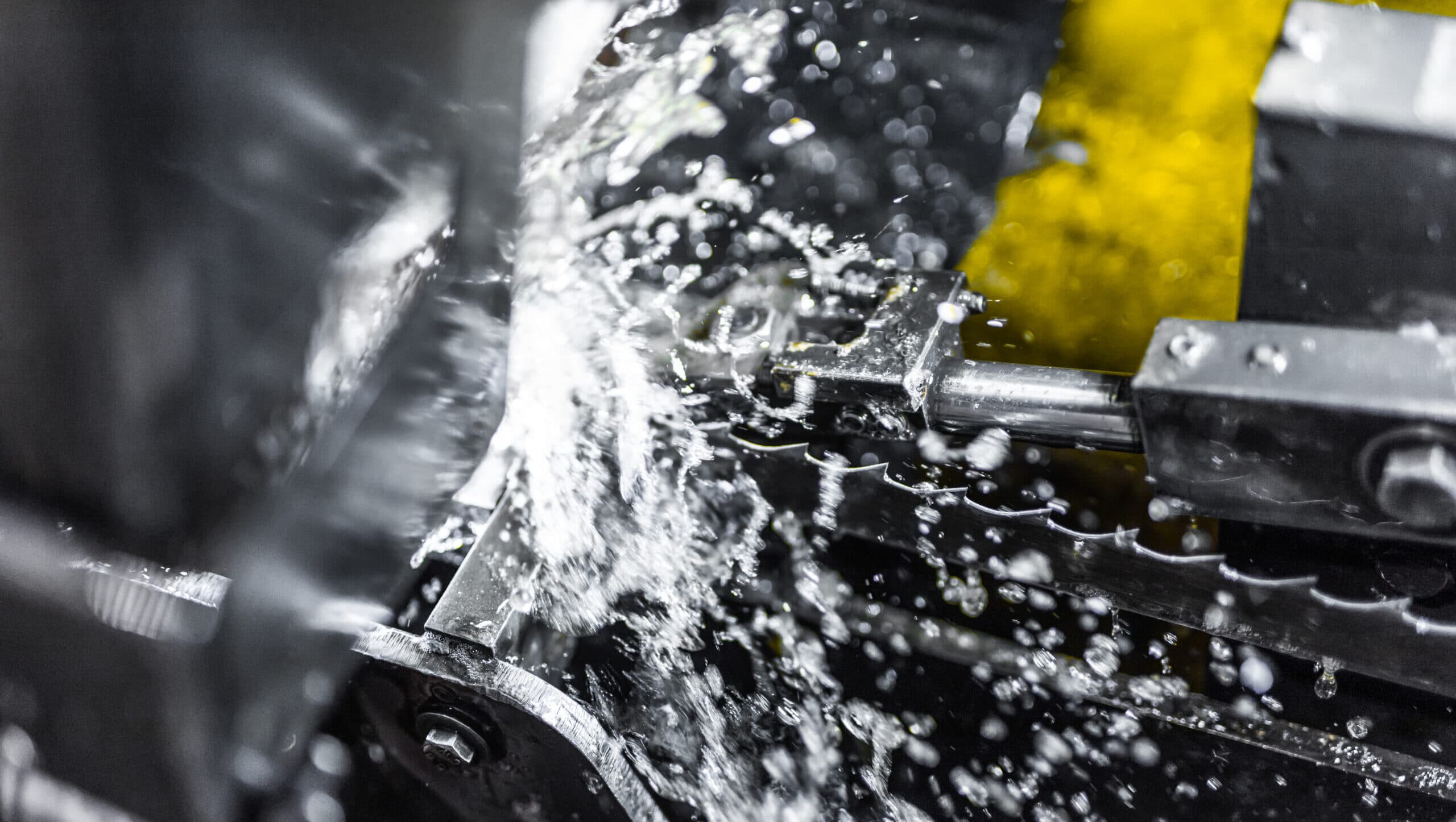

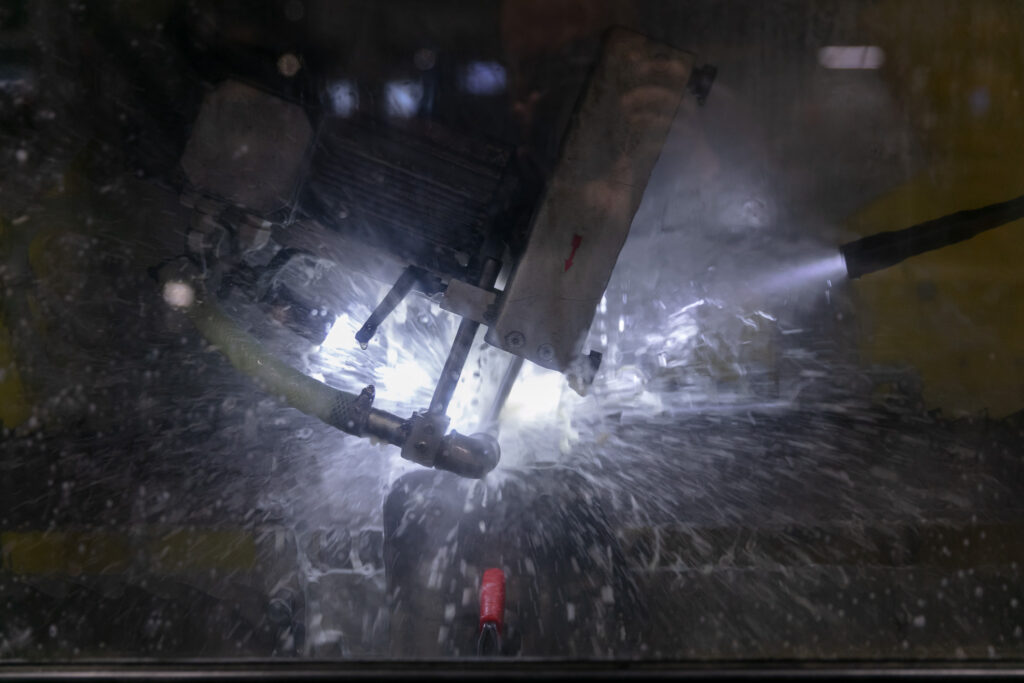

Wet grinding ensures high-quality removal of high temperatures from the sharpening point. The ground area does not overheat, which eliminates the formation of hardened areas in the tooth profile. This method of sharpening prolongs the life of the tooth blade, prevents the bandsaw blades from cracking and helps to make a much more accurate and faster cut.
A sophisticated sharpening machine with a sophisticated system that can cope with the most demanding requirements for sharpening bandsaw blades.
Technické detaily:
A sophisticated sharpening machine with a sophisticated system that can cope with the most demanding requirements for sharpening bandsaw blades.
Technické detaily:
- CNC control Bosch-Rexroth Indra;
- Servomotor with absolute decoder – no need to reset the machine after power failure;
- The tooth profile and grinding wheel shape are programmed by a portable computer;
- Automatic diamond grinding wheel alignment;
- Touch screen control panel
- Memory for 999 tooth profiles;
- Electric saw blade height adjustment;
- Frequency converter for adjustable grinding wheel speed;
- Cooling system with 160l/min;
- Program for variable tooth spacing.
